Why Is Raised-Floor Power Access Important?

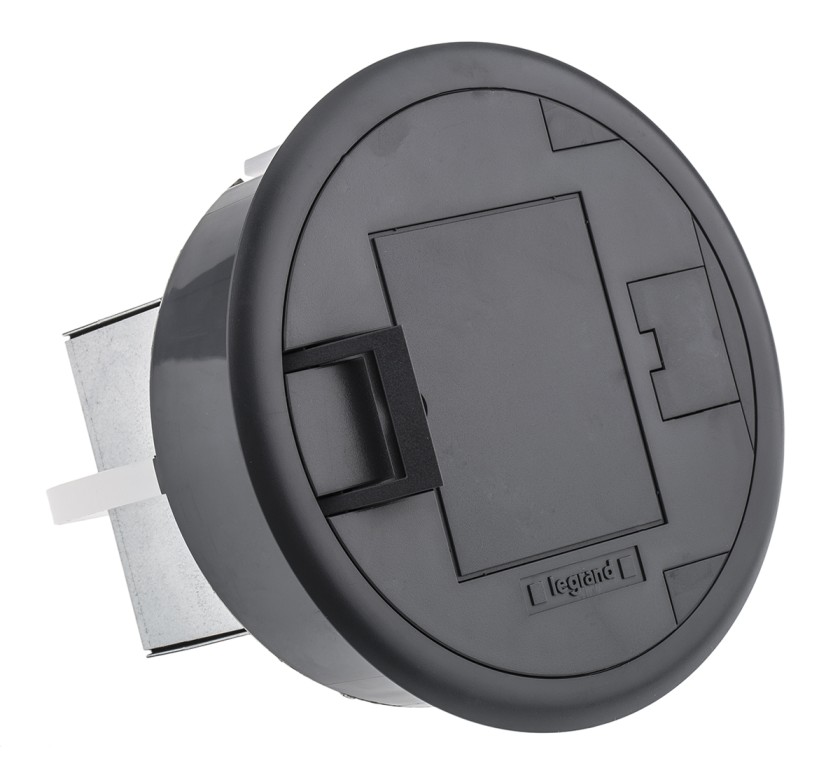

Modern offices and commercial interiors often need power close to desks, meeting tables and flexible work areas without running extension leads across walkways. The Legrand PG6 Grommet provides a compact floor-level connection point for this purpose. Integrating it with suitable Cable Trunking Accessories can help establish an organised route between the building supply and the workstation position.
MPN PG6 is a serviced power grommet supplied with a 13A unswitched socket. Its circular form allows electrical access to be positioned within a raised floor while maintaining a discreet appearance. This is valuable in fit-outs where furniture layouts may change but accessible mains power remains essential.
What Does the Legrand PG6 Grommet Provide?
The Legrand PG6 Grommet combines a plastic floor grommet body with one 13A unswitched socket. An unswitched outlet has no operating switch at the point of use, so circuit control and isolation must be addressed elsewhere in the electrical design.
When comparing Mains Plugs & Sockets for connected equipment, installers should confirm the plug format, current demand and intended environment. The presence of a 13A socket does not mean every appliance can be connected without calculation. The final circuit, protective device and total load must comply with applicable installation requirements.
How Do Its Dimensions Affect Floor Planning?
The product listing identifies an overall diameter of 169mm and a depth of 102mm. Legrand technical information specifies a 152mm hole size for the 150mm plastic grommet range. These dimensions must be checked against the floor panel, floor void and obstructions beneath the proposed position.
The upper flange needs enough uninterrupted surface to sit correctly, while the body requires vertical clearance below the panel. Support rails, ducts, data routes and structural elements can prevent correct placement even when the visible floor area appears suitable.
Accurate marking and a clean circular cut-out are important. An oversized or irregular opening may reduce support or prevent the grommet from seating securely.
Why Is the Circular Format Useful in Commercial Interiors?
A circular cut-out can be quicker to prepare than a large rectangular opening when appropriate equipment and procedures are used. The compact footprint also helps power access blend into office, retail, educational and hospitality interiors.
The Legrand PG6 Grommet is particularly useful where one local socket is required rather than a multi-compartment floor box. It can provide convenient access beneath a workstation, display unit or meeting table without occupying unnecessary floor space.
The position should still be coordinated with furniture. Installing the unit beneath a fixed pedestal or heavy cabinet can make the outlet difficult to reach.
How Should Cables Be Protected Around the Floor Outlet?
Cabling below and above a raised floor requires planned mechanical protection. Cable Sleeves can provide abrasion resistance or bundle organisation where conductors require additional covering, although the selected sleeve must match the cable and its environment.
Near furniture and equipment, Cable Clips & Clamps can hold flexible leads in controlled positions. Cables should not be stretched tightly, trapped beneath furniture or routed where chair wheels and foot traffic can repeatedly compress them.
Power and data services should be separated according to relevant design rules. Loose leads must not cross escape routes or create trip hazards.
How Can Circuit Identification Improve Maintenance?
Clear identification helps facilities teams understand which circuit supplies a workstation or floor zone. Cable Markers placed at suitable points can support inspection, fault tracing and future alterations without relying on guesswork.
Labels should remain legible and correspond with distribution-board records. This becomes especially useful in open-plan spaces containing numerous similar floor outlets.
Before maintenance begins, technicians must isolate the correct circuit and prove it dead using an approved procedure. An unswitched socket is not an isolation device, and unplugging equipment does not isolate the wiring supplying the grommet.
What Should Be Checked Before Installation?
The floor construction must accept the required cut-out without weakening the panel. Installers should confirm panel material, thickness, void depth, load-bearing restrictions and existing services before drilling or cutting.
The supply cable, earthing arrangement and protective device must be suitable for a 13A socket circuit. Wiring should follow Legrand instructions and applicable electrical regulations. Because the work involves mains electricity, installation and testing should be completed by a competent person.
The Legrand PG6 Grommet must also be inspected before fitting. A cracked body, distorted flange or damaged socket should never be installed.
Where Does This Power Grommet Add the Most Value?
The product is well suited to raised-floor offices, conference rooms, training facilities, reception areas and commercial display spaces. It can serve individual desks, shared tables, point-of-sale equipment or other suitable appliances positioned away from perimeter wall sockets.
Its strongest advantage is focused access. Instead of installing a larger floor box with unused compartments, designers can place one power point where the layout requires it. This can support a cleaner finish and reduce dependence on trailing extension leads.
Projects requiring several sockets, integrated data outlets, RCD protection at the outlet or greater environmental resistance may need another floor-access solution. Selection should follow the service brief rather than appearance alone.
How Can Long-Term Reliability Be Maintained?
Routine inspection should check the socket face, grommet body, surrounding floor finish and connected leads. Loose fitting, heat discolouration, cracked plastic or damaged cables require prompt investigation.
Cleaning methods must not allow liquid or debris to enter the socket. Heavy furniture should not rest on the grommet, and equipment leads need enough slack to avoid pulling against the outlet. Electrical testing or repair must only begin after safe isolation.
When correctly positioned, wired and maintained, the Legrand PG6 Grommet offers a compact way to introduce 13A power into raised-floor environments. Its 169mm overall diameter, 152mm cut-out requirement and integrated unswitched socket make it a practical choice for carefully planned commercial power distribution.
